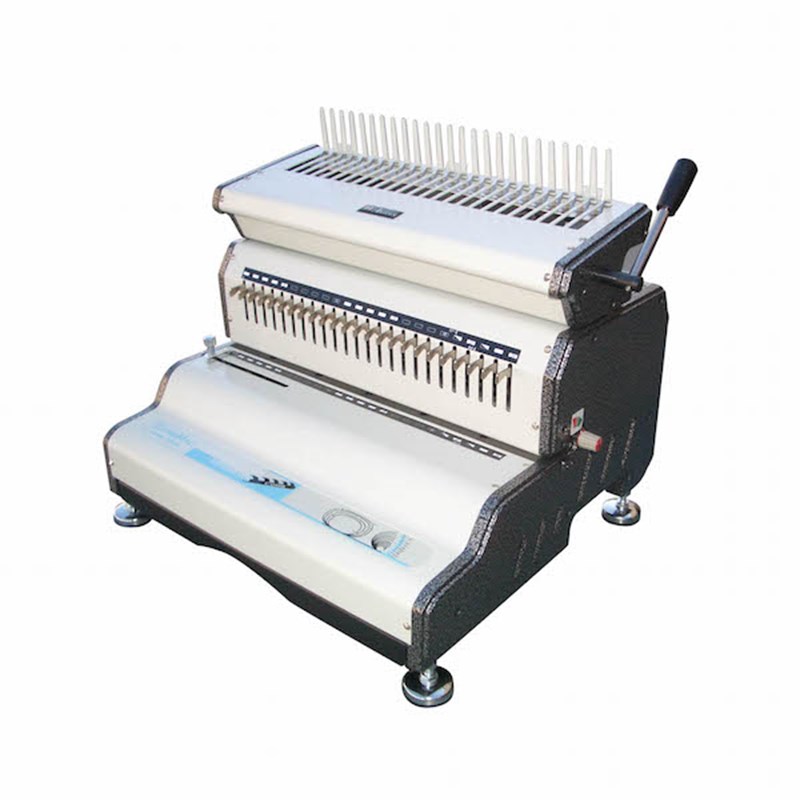

Akiles CombMac-24E Comb Binding Machine Click on Image to Enlarge
Akiles CombMac-24E Comb Binding Machine Heavy duty comb binding machine ACM24E

Akiles CombMac-24E Comb Binding Machine

SKU: ACM24E
$1,179.50
Adding this item to your cart will qualify your order for US domestic

AkilesLogo

In Stock
QTY:
In Stock
QTY:

Akiles

Akiles CombMac-24E

Electric Comb Binding Equipment

Heavy-Duty Electric Punch & Manual Comb Opener

  • Fully featured
  • Easy to use
  • Reliable
  • Powerful

With its heavy duty punch motor and complete system of functions, the Akiles CombMac-24E makes comb binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads.

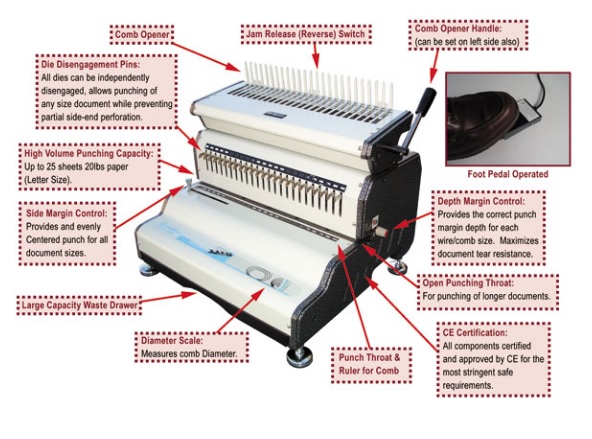

Product Description

  • Comb Opener Comb Opener Handle: (can be set on left side also)
  • Depth Margin Control: Provides the correct punch margin depth for each wire/comb size. Maximizes document tear resistance
  • Open Punching Throat: For punching of longer documents.
  • Punch Throat & Ruler for Comb
  • Diameter Scale: Measures comb Diameter.
  • Large Capacity Waste Drawer
  • Side Margin Control: Provides evenly centered punch for all document sizes.
  • Die Disengagement Pins: All dies can be independently disengaged, allows punching of any size document while preventing partial side-end perforation
  • Jam Release (Reverse) Switch
  • CE Certification: All components certified and approved by CE for the most stringent safe requirements.
  • High Volume Punching Capacity: Up to 25 sheets 20lbs. paper (Letter Size).
  • Foot Pedal Operated Heavy-Duty design by CAE (Computer-Aided Engineering) technology

Perfect for Bindery, Print Shop, Copy Center, Corporation, Advertising Agency, School, Office and more!

Don't forget to choose from the wide selection of AKILES textured & color-coordinated Polycovers & Plastic Comb binding elements, to ensure your documents have a lasting impression!



Assembly Instructions

  1. Place the machine on top of a sturdy working table.
  2. Place the comb binding unit on top of the machine and fasten it by attached screws and wrench
  3. Plug the power cord and foot pedal cord to the back of the machine.
  4. Turn on power switch and press foot pedal to test punching.
  5. Always turn switch-off and place foot pedal out of reach when machine is not in use
  6. To reduce risk of electric shock, never operate the machine enar water
  7. Do not use the machine if power cord is damaged
  8. Do not allow the electric cord to be in contact with hot surfaces
  9. In case of malfunction, return the unit to your distributor for service.
CombMac 24E binding Machine Set up CombMac 24E Comb Binding Machine Assembly CombMac 24E Setup and Assembly CombMac 24 E Power Up and Test



Set-Up Instructions

  1. Push & dial depth margin control to the right position depending on the diameter of your combs
  2. If needed, use master selector to select/identify the size of your combs
CombMac 24E Setup Small Depth Margin Control  CombMac 24E Medium Depth margin Control CombMac 24E Mid Depth margin Control   Master Comb Size Selector



Punching Instructions

  1. Align side margin control to proper sheet and cover sizePunching Instructions
  2. Pull out disengagement pins to avoid partially punched holes
  3. Insert sheets and press foot pedal to punch
CombMac 24E Punching Instructions Akiles CombMac 24E Disengagement pins Akiles CombMac 24E Foot Pedal



Comb Binding Instructions

  1. Place pre-selected comb behind comb binding fingers with the comb opening side facing upward.
  2. Slowly pull comb binding handle forward to open comb until the comb binder is opened sufficiently to allow pages and covers to be inserted
  3. Nearly align the pages and covers. Holding the documents tightly with the front towards you, feed the comb through the holes.
  4. When all comb are fully positioned through the holes, slowly move the handle backwards to close the comb. Lift the boud documents from fingers.



Akiles CombMac Binding Machine Instructions CombMac 24E Binding Instructions CombMac 24E Comb Binding Instructions Akiles Comb Binding Directions

Specifications

Punching Electric (Foot Pedal)
Punching Pitch Standard Comb Pitch
Punching Length 14" (with open ends for longer sizes)
Disengagement Dies All 24 Dies
Hole Sizes Rectangular 3.12 X 7.94mm
Single Punching Capacity  Up to 25 sheets of 20 lbs paper, letter size

Binding Capacity

3/16" - 2"
Adjustable Side Margin Included
Adjustable Depth Margin Included
Weight and Volume 70 lbs & 3.74 Cbft
Warranty One Year
