Onyx HD7000 Click on Image to Enlarge
Onyx HD7000 Rhin-O-Tuff HD 7000 HD7000 Binder Rhin O Tuff HD 7000 Electric Punch Rhin O Tuff HD 7000 Binding Machine

Rhin-O-Tuff Heavy Duty Punch Onyx HD7000

SKU: HD7000
$4,315.70
This item is oversize or LTL – not qualified for free shipping.

Punch
Type

All

Coil, Comb, Wire, Velobind

Punch
Method

Electric

Max
Punch
Capacity

40

Sheets

Punch
Length

14"

Max

Cycle
Time

25 Cycles

Per Minute

Available
Die
Sets

12

Shop all Rhin-O-Tuff binding machines available at Finitura.

Rhin-O-Tuff HD7000

In Stock
QTY:
In Stock
QTY:

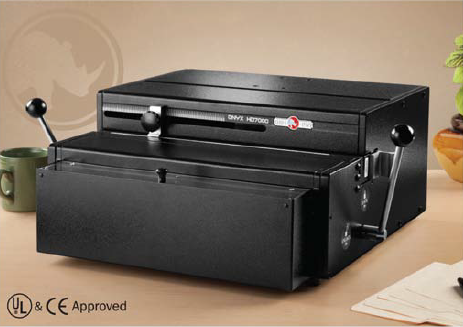

Rhin-O-Tuff Onyx Heavy Duty Punch HD7000Rhin-O-Tuff Onyx HD 7000

Rhin-O-Tuff Onyx HD7000 Comb, Wire & Coil Binding Machine

The Rhin-O-Tuff ONYX Heavy Duty Punch System - HD7000 is an open-ended spiral, comb, wire and coil punching machine with a 14-inch (356 mm) maximum punch length. Built with a patented Auto Reverse Feature with Overload Detection, this Rhin-O-Tuff punch machine reduces punch jams which can slow down your work. Each machine comes standard with a foot pedal though optional Versa and Palm switches allow for multiple operating methods.

Ideal for mid to high volume commercial and corporate use, the HD7000 uses a patented Quick Change Die System (QCDS) with 12 interchangeable die patterns for more comb, wire, and coil punch variety than ever before. This easy to use ONYX system includes pin pulls and pre-set paper stop positions for accurate punches.

Rhin-O-Tuff HD7000 Highlights

  • Patented Auto Reverse with Overload Detection
  • Patented Quick Change Die System (QCDS)
  • 25 cycles per minute
  • 12 interchangeable die patterns
  • Easy “Paper to Pin” alignment
  • Foot pedal operation with optional Versa or Palm switch

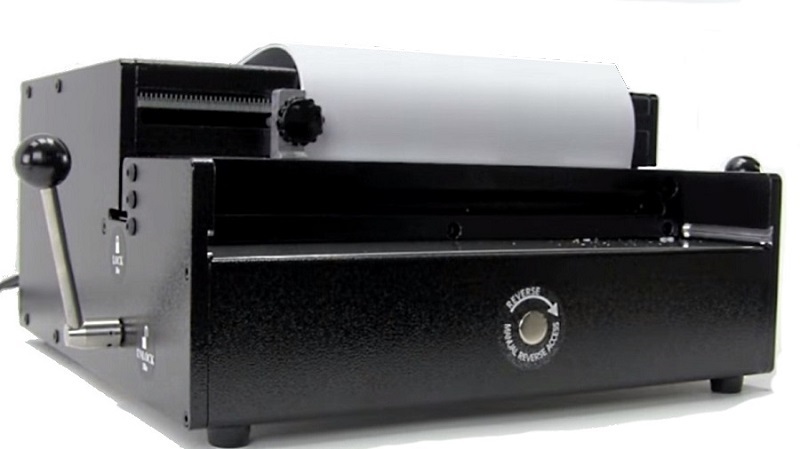

  • EZ view chip tray
  • 3 year manufacturer warranty

How to Bind with the Rhin-O-Tuff HD7000Onyx HD7000 Binding Machine

  1. Slide up to 40 sheets of 20 lb. paper vertically into the die assembly.

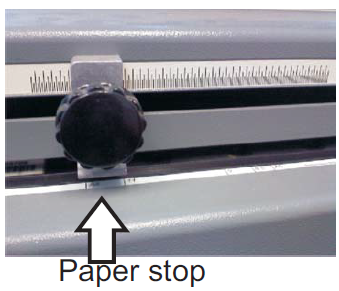

  2. Move paper to paper stop on left side.
  3. Ensure paper has flush edges for proper punch alignment.
  4. Activate the punch using the foot pedal.
Contact Finitura for more information on the Rhin-O-Tuff HD7000.

Rhin-O-Tuff Onyx HD7000 Specs

Machine Dimensions
  • 17” x 8” x 16 ¾”
Maximum Weight
  • 87 lbs.
Punching Thickness
  • 40 sheets of 20 lb. paper
Punch Length
  • Up to 14"
USA Power Requirement
  • 115 AC Volts
Available Die Sets
  • 3 hole round 4 ¼” hole spacing – 5/16” hole diameter
  • 3 – 5 – 7 round hole – 5/16” diameter
  • 2:1 round .500” hole spacing - .500” hole diameter
  • 3:1 round .333” hole spacing - .172” hole diameter
  • 4:1 round .2475” hole spacing - .188” hole diameter
  • 4:1 round .248” hole spacing - .188” hole diameter
  • 4:1 .250 hole spacing - .172” hole diameter
  • Velobind 1” hole spacing - .125” hole diameter
  • Comb 9/16” hole spacing - .188” hole diameter
  • 2:1 rectangle .500” hole spacing - .125” x .250” hole size
  • 2:1 square .500” hole spacing - .250” square hole size
  • 3:1 square “ProClick” - .1875” square hole size
  • 3:1 square .333” hole spacing - .156” square hole size
  • 3:1 oval hole .333” hole spacing - .256” hole diameter
  • 4:1 oval hole .2475 hole spacing - .188” x .157” oval hole
  • 4:1 oval hole .250” hole spacing - .172” x .138” oval hole





Rhin-O-Tuff HD7000 Operation Video
