Fujipla ALM3230 Auto Laminator -Call for Special Pricing Click on Image to Enlarge
Fujipla ALM3230 Auto Laminator -Call for Special Pricing Automatic Laminator Industrial Laminator

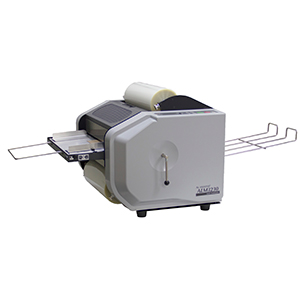

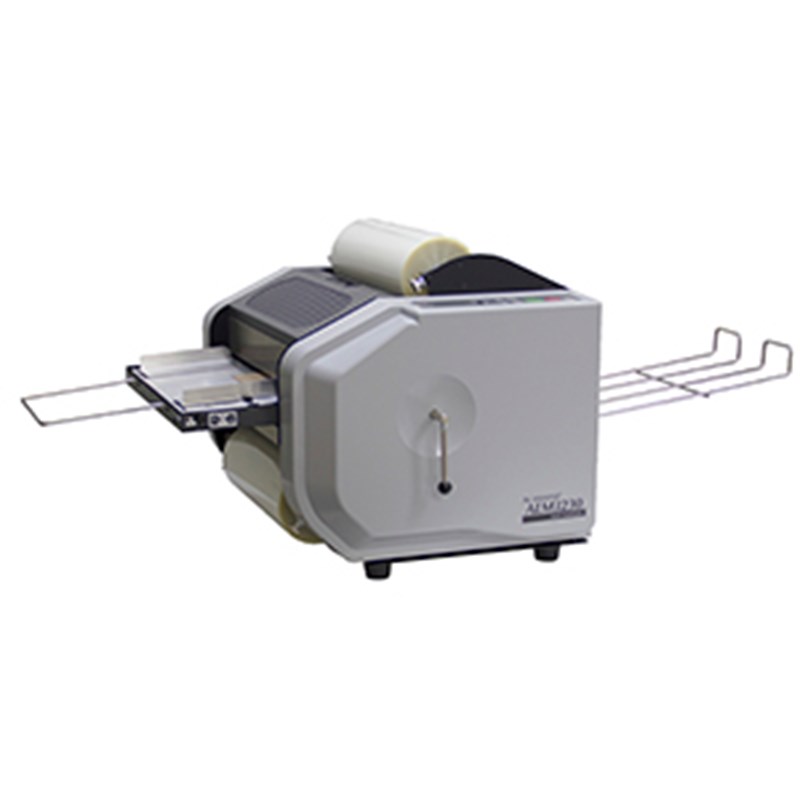

DryLam Fujipla ALM3230 Auto Laminator

SKUs: Select product options
$9,995.00 - $10,494.00
This item is oversize or LTL โ€“ not qualified for free shipping.

In Stock
QTY:
In Stock
QTY:

Labor-free automation with feeding, laminating, and trimming at the touch of a button! • Heated rollers for crystal clear scratch-free laminations • Adjustable trim for full encapsulation or precise flush cut • Sits on a tabletop or optional stand • Green Button Operation: touch the button and walk away for labor-free, fully trimmed and laminated sheets • ASAP adhesive laminating films in 1.5, 3, and 5 mil, gloss, matte, and Elegant Silk Matte adheres to hard-to-laminate digitally printed sheets Eliminate time-consuming, costly hand feeding FUJiPla ALM 3230 Automatic Laminator

  • Heated rollers for crystal clear scratch-free laminations
  • Adjustable trim for full encapsulation or precise flush cut
  • Sits on a tabletop or optional stand
  • Green Button Operation: touch the button and walk away for labor-free, fully trimmed and laminated sheets
  • ASAP adhesive laminating films in 1.5, 3 and 5 mil, gloss, matte and Elegant Silk Matte adheres to hard-to-laminate digitally printed sheets


    Key Features:
  • Small Foot Print – less than 4 sq. ft.
  • Table Top or optional stand with locking roller casters
  • 115 Volt, 15 amp service with economy mode
  • Ultra quick warm up of less than 5 minutes
  • Virtually Unattended Operation
  • Digital Sheets sizes: 13”x19”, 12”x18”, 11”x17”, 8.5”x11”
  • Laminates copy paper up to 100lb cover stock
  • Automatic two side lamination or short one side work
  • Adjustable Automatic Flush or Sealed edge trim
  • 1 year parts and labor warranty
    Labor-free automation with feeding, laminating, and trimming at the touch of a button!


    Model ALM 3230
  • Laminating Speed: Fixed speed at 40”/min.
  • Temperature Range: 170-270°F
  • Ultra Fast Warm-Up Time: Approximately 5 minutes
  • Film Thickness: 1.5, 3, and 5 mil
  • Thickness of Objects: 20lb bond - 100lb cover
  • Paper Feeding Capacity: 100 Sheets
  • Adjustable Paper Guide Applicable Sizes: Letter Paper Size 8½” x 11” Tabloid Paper Size 11” x 17” Digital Paper Size 12” x 18” Digital Paper Size 13” x 19”
  • Trimming Methods (2 modes): Flush trim or edge seal for all 4 sides of the print
  • Operation Panel LCD display for start, stop, temperature, and trim settings, leading and trailing edge side cuts are adjustable
  • Other Features Laminated sheet counter, Film tension control, Roller gap lever, Paper thickness feeder adjustment lever
  • Power Consumption: 900W
  • Power Supply: AC 120V (60Hz)
  • Net Weight: Laminator: 100 Lbs. Stand: 48.5 Lbs.
  • Optional Accessories: Rolling Stand

  • Other Features
  • Laminated sheet counter,
  • Film tension control,
  • Roller gap lever,
  • Paper thickness feeder adjustment lever
  • Power Consumption 900W
  • Power Supply AC 120V (60Hz)
  • Net Weight Laminator 100 Lbs.
  • Optional Stand: 48.5 Lbs.
  • Optional Accessories Rolling Stand

  • ALM Exclusive ASAP Roll Film
  • Perfect for Digital Print technology
  • Anti-static properties ALM Exclusive ASAP Roll Film
    1.5mil, 12.6” x 984 ft
    3.0mil, 12.6” x 492 ft
    5.0mil, 12.6” x 328 ft
    1.2mil, 12.6” x 984 ft, One Side Nylon set (Gloss & Matte Versions)


DL-3230, DLALM3230, DLALM3230-Stand
