Rhin-O-Tuff Onyx HD6500 Heavy Duty Punch System
Rhin-O-Tuff Onyx Heavy Duty Punch HD6500

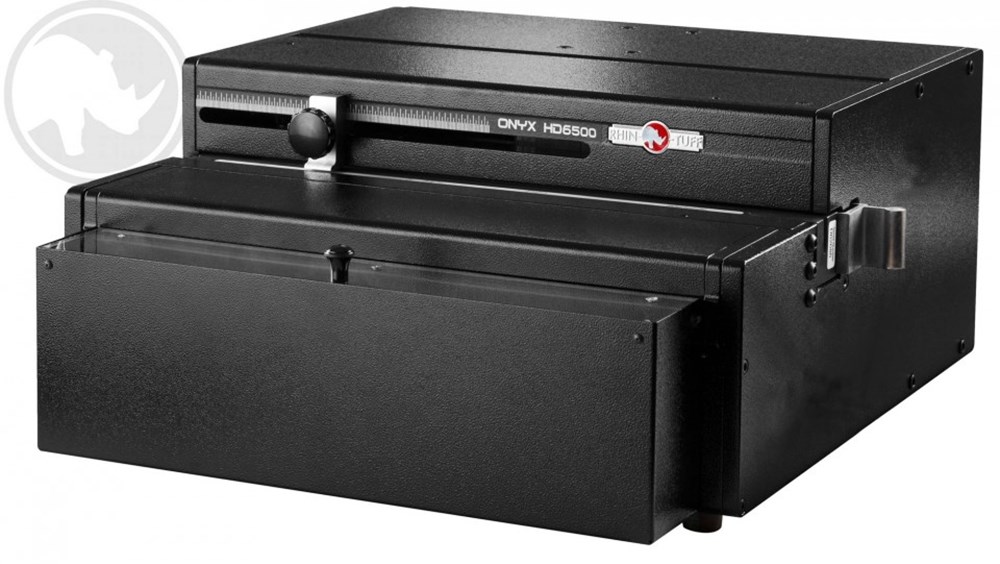

Rhin-O-Tuff Onyx HD6500 Comb, Wire & Coil Binding Machine
The Rhin-O-Tuff ONYX Heavy Duty Punch System – HD6500 includes comb, wire and coil punch capabilities. The 2-Bolt EZ change Die System means the 20+ interchangeable dies can be swapped out in 60 seconds for continuous punching. Punch combs, wire loops, plastic coils, 3 hole loose leaf, and Velobind GBC. Operate the HD6500 with the standard foot pedal or use a Versa Switch or Palm Switch.
The ONYX series punch machines are designed for mid to high volume corporate use and are backed by a 3 year manufacturer warranty. The patented Auto Reverse and Overload Detection Features prevent jams when punching. Purchase your high efficiency ONYX series punch machine system and supplies online from Finitura.
Rhin-O-Tuff HD6500 Highlights
- Patented Auto Reverse Feature with Overload Detection
- 2-Bolt EZ Change Die System
- 25 cycles per minute
- Pre-set Paper Stop Guide
- Open-ended punching
- 20 interchangeable die options available
- 12 interchangeable hole patterns available
- Easy “Paper to Pin” alignment
- Foot pedal operation with optional Versa or Palm switch
- EZ View Chip Tray
How to Bind with the Rhin-O-Tuff HD6500
- Slide up to 40 sheets of 20 lb. paper vertically into the die assembly.
- Move paper to paper stop on left side.
- Ensure paper has flush edges for proper punch alignment.
- Activate the punch using the foot pedal.
Contact Finitura for more information on the Rhin-O-Tuff HD6500.
Rhin-O-Tuff HD6500 Specs
- Machine Dimensions: 17” x 9” x 20”
- Maximum Weight: 81 lbs shipped
- Punch Length: 14”
- Punch Capacity: 40 sheets of 20 lb. paper
- USA Power Requirements: 115 AC Volts
- Available Die Sets:
- 3 hole round 4 ¼” hole spacing – 5/16” hole diameter
- 3 – 5 – 7 round hole – 5/16” diameter
- 2:1 round .500” hole spacing - .500” hole diameter
- 3:1 round .333” hole spacing - .172” hole diameter
- 4:1 round .2475” hole spacing - .188” hole diameter
- 4:1 round .248” hole spacing - .188” hole diameter
- 4:1 .250 hole spacing - .172” hole diameter
- Velobind 1” hole spacing - .125” hole diameter
- Comb 9/16” hole spacing - .188” hole diameter
- 2:1 rectangle .500” hole spacing - .125” x .250” hole size
- 2:1 square .500” hole spacing - .250” square hole size
- 3:1 square “ProClick” - .1875” square hole size
- 3:1 square .333” hole spacing - .156” square hole size
- 3:1 oval hole .333” hole spacing - .256” hole diameter
- 4:1 oval hole .2475 hole spacing - .188” x .157” oval hole
- 4:1 oval hole .250” hole spacing - .172” x .138” oval hole
