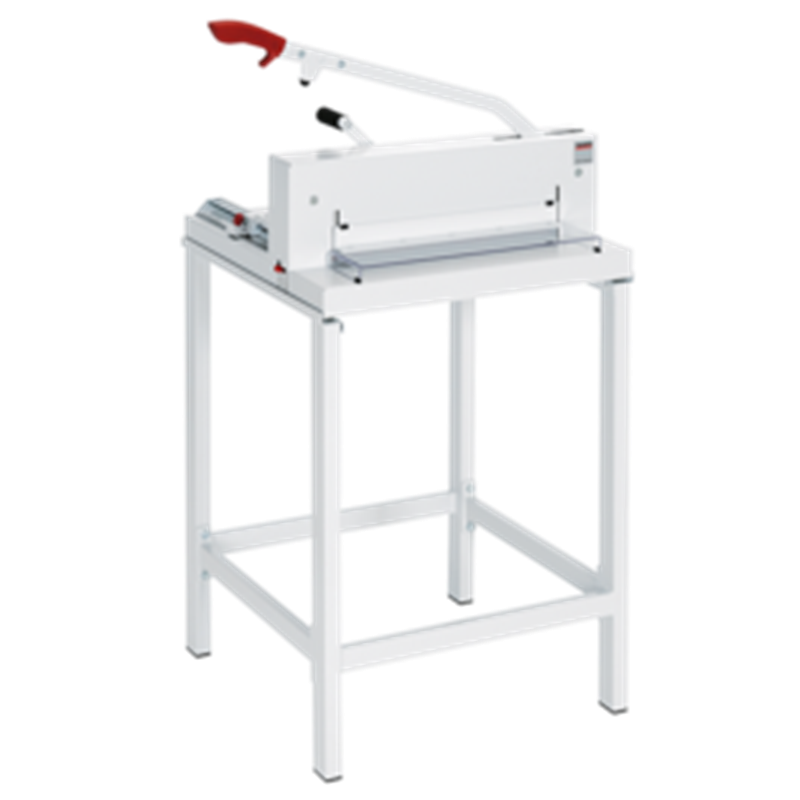

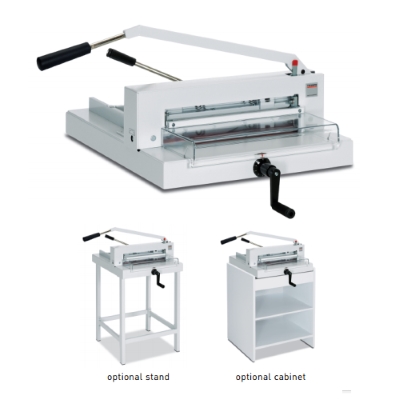

MBM Triumph 4305 comes with optional stand or cabinet

Manual Cutter / Cutting Sticks or Knife

SKU: MBMCU0450L
$1,889.00
This item is oversize or LTL – not qualified for free shipping.

MBMLogo

In Stock
QTY:
In Stock
QTY:

MBM TRIUMPH 4305 Cutter

SAFE BLADE CHANGESBlade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of blade.TRANSPARENT SAFETY GUARDA cut can only be executed if the hinged safety guard is in the closed position and the blade safety catch is released.PRECISION BACK GAUGEThe cast aluminum back gauge and side guide with measurement scale allows precise paper alignment.EASY CUTTING STICK CHANGECutting sticks can be turned or changed easily from the outside of the machine no tools are required.

Manual tabletop cutter with spindle-guided back gauge, fast-action clamp, and SCS safety features.SCS safety features: hinged, transparent safety guard on front table (locks automatically while cutting); transparent safety cover on rear table; safety catch (locks blade lever in up position); blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.Spindle-guided back gauge with calibrated crank and measurement scale. Patented, lever-activated, fast-action clamp. Precision side guide with measurement scale (mm / inches). High quality, German steel blade. Solid steel blade carrier and adjustable blade guides. All-metal construction. Optional stand (shown above), or cabinet with storage shelves. UL and C UL approved.Dimensions (D x W x H), inches: 34 5/8 x 34 5/8 x 15 3/4 (45 1/4 H with stand, 44 H with cabinet)Shipping weight, pounds: 115 (141 with stand, 210 with cabinet)

Cutting width, inches 16 7/8
Cutting height, inches 1 1/2
Narrow cut, inches 1 5/16
Length behind blade, inches    17
MBM TRIUMPH 4300 Cutter/Cutting Sticks or Knife
Starting at: $1,049.00
Pricing listed is cutter only - please see options available for additional stand or cabinet
