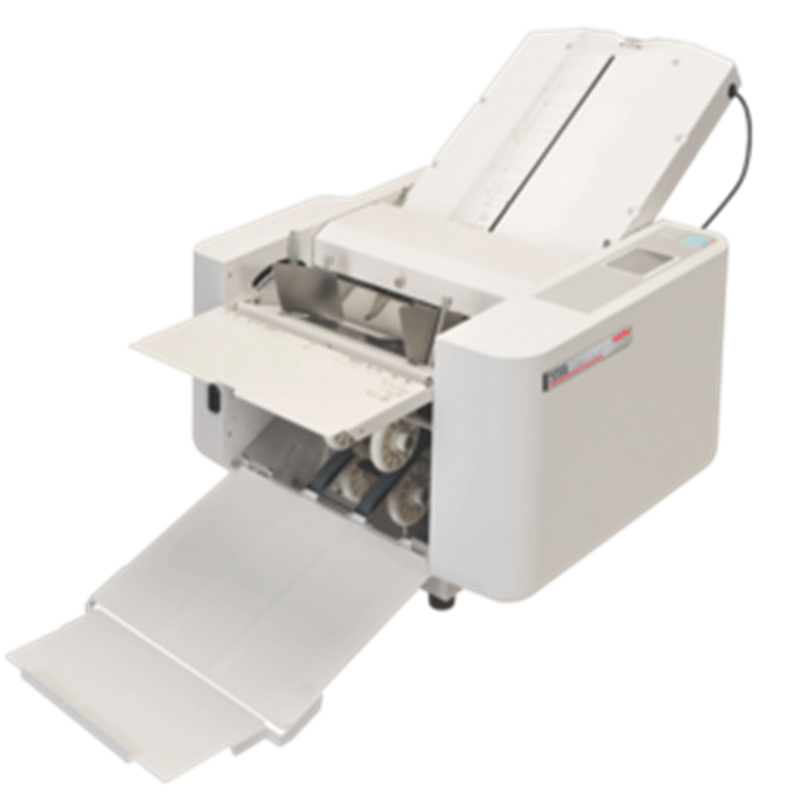

MBM 508A Paper Folder Click on Image to Enlarge

MBM 508A Paper Folder

This item is oversize or LTL – not qualified for free shipping.


In Stock
In Stock

MBM 508A Paper Folder - Leasing Options Available!

DOUBLE FEED DETECTIONThe double feed detection sensor prevents mis-folded papers being contaminated to outputs.PAPER FEED/SEPARATOR PRESSURE ADJUSTMENTPaper feed pressure adjustment helps the machine to feed a wider range of stocks, and the separator pressure adjustment prevents double feeds.TOUCH SCREENThe LED touch screen sets up 36 standard folds automatically at the touch of a button. Up to 24 custom folds can be stored in memory.

Reliable automatic folder that comes pre-programmed with 36 standard folds. Up to 24 custom jobs can be stored in memory. Automatic 3 roller friction feed system. Pre-programmed with 36 standard folds. Stores 24 custom folds in memory. Automatic feed table elevation. Features paper feed pressure and separator pressure adjustment. Color LED touch screen control panel includes 4 digit addition and subtraction digital counter. Test button folds 2 sheets for inspection. Automatically recognizes and displays paper size. Extended exit tray for neat stacking of folded sheets. Automatic conveyor and self-setting exit rollers ensure smooth ejection of folded paper. Single sheet feeding automatically maintained for different weights of paper. Auxiliary paper guide for cross folding. Load and unload paper from same side. Display alert and audible signal in case of incorrect operation. Skew and micro-adjustment dials. Fully enclosed fold tables for quiet operation. Quick-release roller system for easy maintenance. Optional scoring, micro-perforating, and slitting units.

Dimensions (D x W x H), inches:39 3/4 x 21 1/2 x 19 3/4

Shipping weight, pounds: 82

Speed, sheets per hour Up to 14,400*
Paper size, inches 3 1/2 x 5 to 11 x 17
Paper weight, pounds 12 to 80*
Sheet capacity 500*
Electrical requirements    115 V, 60 Hz

*may vary due to variations in paper and power supply
