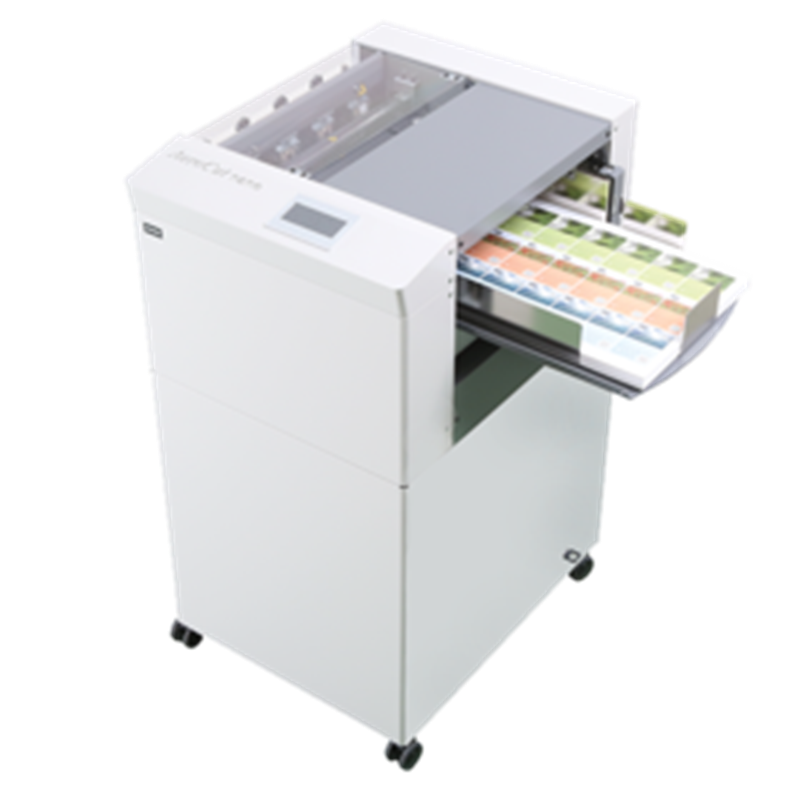

MBM AEROCUT NANO PLUS
In Stock
In Stock
DocumentsMBM AEROCUT NANO - Leasing Options Available!

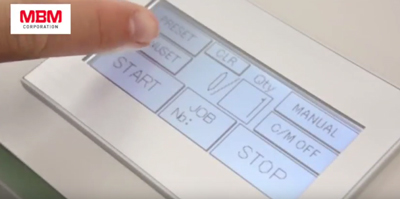

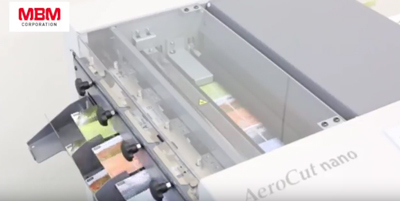

Air suction feed system featuring instaset bar and touch screen for accurate slitter positioning.Stable air feed mechanism takes a wide range of paper stocks. Cuts and cross cuts prints in one pass. Elevated feed table separates digital stocks to avoid mis-feedings, damages and roller marks. Density sensor for true double feed detection. 2 single blade margin slitters and 2 double blade gutter slitters are easily adjustable for various stock sizes. InstaSet bar indicates and fixes slitter positions accurately. Intuitive touch screen holds 16 pre-programmed jobs and 40 customized jobs.Includes the Lytrod Vision Focus software to simplify the task of formatting, imposing, and adding personalized information to documents for fast and efficient cutting on the Nano. Dimensions (D x W x H): 25" x 22" x 37 1/2"Shipping weight: 155 lbs.
| Speed, sheets per minute | 22* |
|---|---|
| Paper size, inches | 8 1/4 to 13 x 19 |
| Minimum finished size, inches | 3.3 x 2 |
| Loading capacity, inches | 1 3/16 |
| Power supply | 120 V, 60 Hz |
*May vary due to variations in paper
