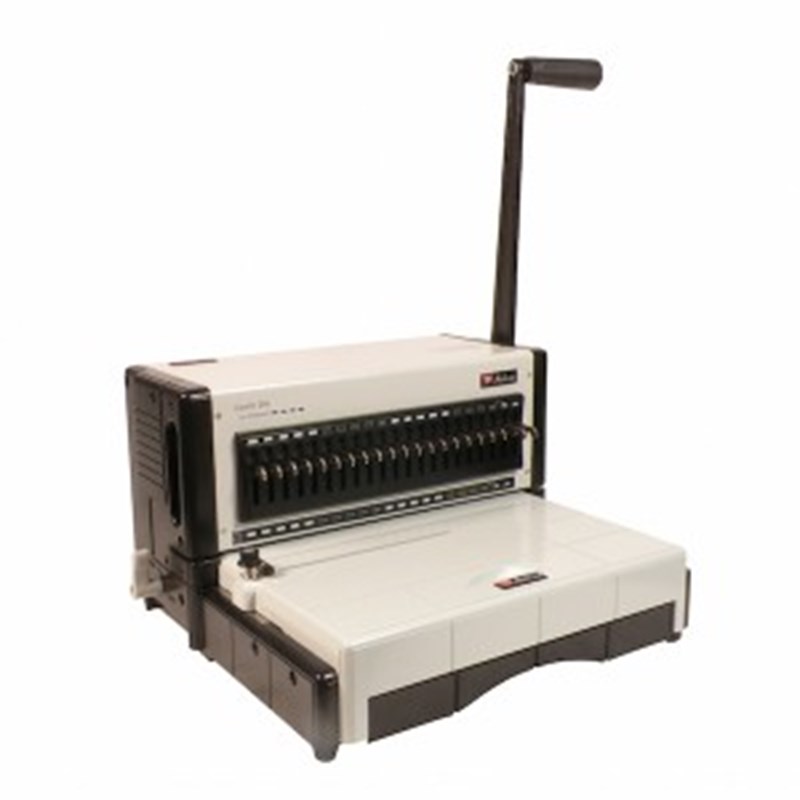

Akiles FlexiPunch-M Heavy Duty Manual Modular Punch
Heavy-Duty Manual Modular Punch with Interchangeable Die Feature
FlexiPunch-M is an innovative modular punching machine with manual operation and an affordable price that gives you the binding options you need in everyday work. You can do a coil binding job, and moments later squeeze in a wire or comb binding project using the same primary punch. The high-quality precision die sets available with this machine will last for years of production. One die of your choice is provided with the unit.
Suggested Supplemental Modules
|We offer a variety of supplemental modules to the FlexiPunch-E, that will help you complete your binding jobs faster and easier. Shown at right on top of the FlexiPunch-E is our Finish@Coil E1 Coil Inserter/Crimper Module. This combination is the worlds first to allow an operator to punch the sheets, insert & crimp coils (sizes 6mm-50mm) all by electrical power! The Finish@Coil E1 footprint fits right on top of the FlexiPunch-E to save space. It can also be placed next to the FlexiPunch-E so 2 operators can work the job simultaneously. Similar modules are available for wire binding (WBM532)and comb binding (CBM650) as well.|
- High Volume Manual Punch Capacity: Up to 25 sheets of 20lb paper per lift.
- Interchangeable Die Sets with Quick Die Change Design: Easily change from one punch pattern to another within seconds, no tools needed!
- Fully Disengageable Pins on all Dies: Allows punching of all paper sizes without partially punched holes at either end.
- Choice of 4 Different Punch Dies: Choose from Comb (rectangular holes), Wire 2:1 (square holes), Wire 3:1 (square holes) and Coil 4:1 (0.2475″) (round holes).
- Adjustable Depth Margin: Available for all punch dies, this key feature provides the correct punch margin depth for each element or book size.
- 12″ Single Punch Length with Open Ends: Enables easy punching of Letter or A4 sizes, as well as even longer sheet sizes.
- Rugged Heavy-Duty Design: All metal construction, including heavy cast side plates. Non-skid feet.
- Weight: 24 Lbs
- One year warranty
