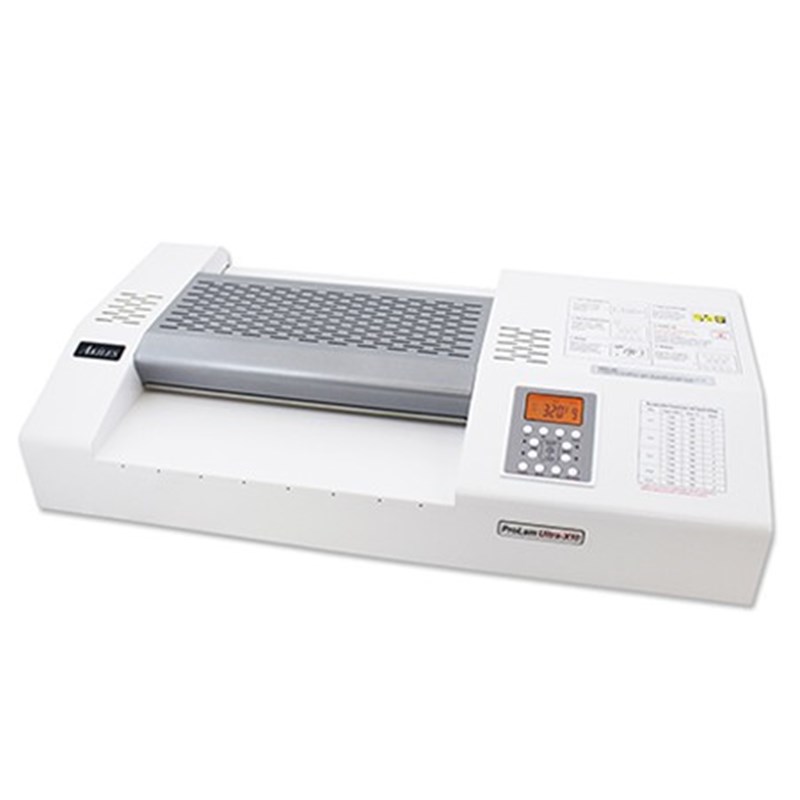

Akiles ProLam Ultra X10 Pouch Laminator
SKU: AKProLamUltraX10
$1,499.00
DIMENSIONS
Height: 17.00 Inches
Width: 25.00 Inches
Length: 19.00 Inches
Weight: 57 Lb(s) 0 Oz
This item is oversize or LTL – not qualified for free shipping.
In Stock
QTY:
In Stock
QTY:
Features
DocumentsProLam Ultra-X10
The Akiles ProLam Ultra-X Series laminators possess superior quality and functionality combined with commercial grade design. Its multiple roller heat system produces professional, crystal-clear and bubble-free pouches every time.
Product Description
Commercial Grade 10 Roller Laminator with 2 Programmable Memory Settings
- Programmable Memory Settings: Allows you to save the ideal temperature and speed for your most frequent projects.
- Blazing Fast 10 Roller Heat System: The 10 roller heat system (X10 only) grants you one of the fastest laminating speeds in its class (i.e. 142″ per minute). 6 heated rollers + 2 cold rollers + 2 ejector rollers guarantees professional grade results at blazing fast speeds.
- Auto Shutoff: Automatically cools and shuts down the machine after usage, to prolong the life of your laminator.
- 13″ and 18.9″ Capacities: The large 13″ (X6 / X10) or extra large 18.9″ (XL) throat allows the machine to laminate a wide array of pouch sizes.
- Removable Cover: Allows quick access to the roller with easy-to-remove thumb screws.
- LCD Control Panel: Backlit LCD display with labeled keypad makes it easy to operate.
- Setting Guide: Shows the recommend temperature and speed settings for different pouch thicknesses.
- Air Cooling System: Patented internal cooling system ensures the laminator stays cool to the touch while in use.
ProLam Ultra | X6 | XL | X10 |
|---|---|---|---|
Throat Capacity |
13" (330 mm) | 18.9" (480 mm) | 13" (330 mm) |
Max Laminating Speed |
59" / min | 47" / min | 142" / min |
Max Pouch Thickness |
14 mil (350 mic) | ||
Max Laminating Thickness |
1/8" (3 mm) | ||
Heated Roller System |
4 Hot / 2 Cold | 6 Hot / 4 Cold | |
Memory Settings |
2 Programmable (Temperature & Speed) | ||
Speed Control |
9 Settings | ||
Operating Temperature |
32°F - 284°F | 32°F - 320°F | |
Dimensions |
21" x 10.5" x 5" | 27.25" x 10.5" x 5" | 14" x 25.75" x 5.75" |
Weight |
35 lbs (16 kg) | 44 lbs (20 kg) | 57 lbs (26 kg) |
Power Consumption |
1050 W | 1200 W | 1560 W |
