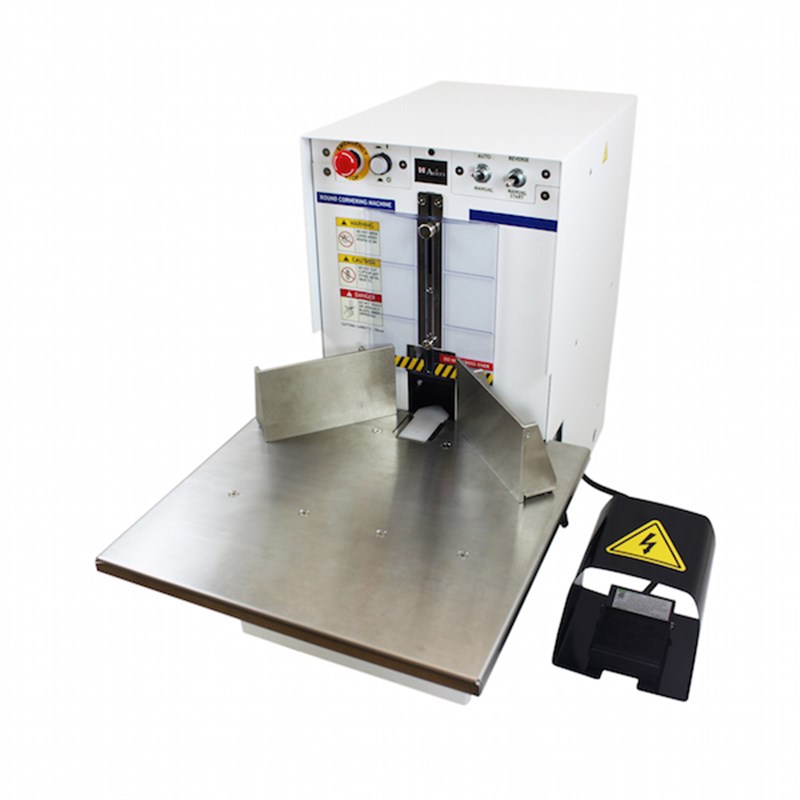

Akiles Diamond 6 Electric Corner Rounder Machine

SKU: AKDiamond6
$5,399.00
DIMENSIONS Height: 45.00 Inches Width: 38.00 Inches Length: 45.00 Inches Weight: 104 Lb(s) 0 Oz
This item is oversize or LTL – not qualified for free shipping.

In Stock
QTY:
+ Add To Wish List
In Stock
QTY:
+ Add To Wish List
Features
Documents

Diamond-6

Corner Rounding Equipment

The Diamond 6 is a heavy duty electric corner rounding machine. It can round 6cm or up to 600 sheets of 20 lb paper. The Diamond 6 and 7 are the perfect machines for large volume jobs that require high productivity.

Product Description

  • Cuts up to 2.38″ (60mm): The Diamond 6 cuts 2.38″ or 600 sheets of 20 lb paper
  • 7 Interchangeable Dies: Available dies include 1/8″, 1/4″, 3/8″, 1/2″, 5/8″, Straight, and Slot Die
  • Protective Safety Cover: Keeps your fingers safely out of the cutting area during use
  • Patented Die Design: Patented upper die design & micro-adjustable lower die, allow for smooth and accurate cuts
  • Manual & Auto Mode: Switch between automatic foot pedal or manual hand operation with the flip of a switch
  • Tool & Scrap Box: Separate built-in storage bins for tools and corner scraps
  • Large Work Table
  • Heavy-Duty Foot Pedal
  • 1 Year Warranty

Specs
Model:Diamond 6Diamond 7
Maximum Rounding Capacity: 2-3/8″ (60mm) 2-3/4″ (70mm)
600 Sheets (20 lb) 700 Sheets (20 lb)
Maximum Slot Capacity: 2mm N/A
Included Die: 1/4″
Available Dies 1/8″, 1/4″, 3/8″, Straight, and Half-Moon (1/2″ and 5/8″ are Special Order)
Detachable Pressing Bar: No Yes
Protective Safety Cover: Included
Work Table: Included
Storage & Trash Bin: Included
Motor: 100 W 200 W
Dimensions: 24-5/8″ W x 12-5/8″ L x 17-1/2″ H
Weight: 104 lbs 110 lbs
Warranty: 1 Year

Akiles Diamond-6 Operator Manual
