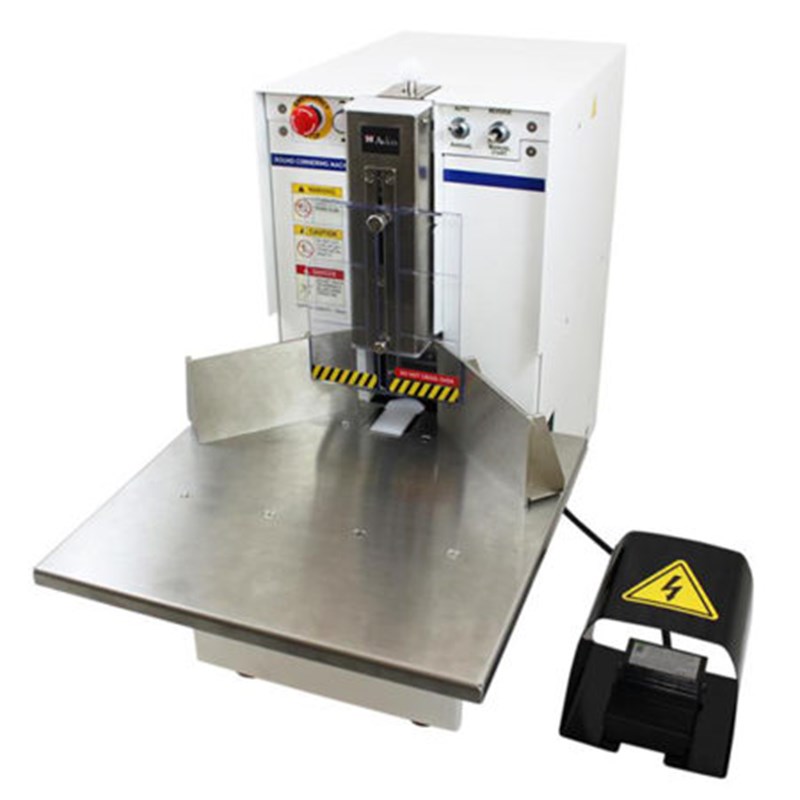

Akiles Diamond 7 Electric Corner Rounder Machine
SKU: AKDiamond7
$5,999.00
DIMENSIONS
Height: 45.00 Inches
Width: 38.00 Inches
Length: 45.00 Inches
Weight: 110 Lb(s) 0 Oz
This item is oversize or LTL – not qualified for free shipping.
In Stock
QTY:
In Stock
QTY:
Features
DocumentsDiamond-7
Corner Rounding Equipment
The Diamond 7 is out top of the line heavy duty electric corner rounding machine. It can round 7cm or up to 700 sheets of 20 lb paper. The Diamond 6 and 7 are the perfect machines for large volume jobs that require high productivity.
Product Description
- Cuts up to 2.75″ (70mm): The Diamond 7 cuts 2.75″ or 700 sheets of 20 lb paper.
- 7 Interchangeable Dies: Available dies include 1/8″, 1/4″, 3/8″, 1/2″, 5/8″, Straight, and Half-Moon.
- Protective Safety Cover: Keeps your fingers safely out of the cutting area during use.
- Patented Die Design: Patented upper die design & micro-adjustable lower die, allow for smooth and accurate cuts.
- Detachable Pressing Bar: Holds paper in place during the rounding process and also detaches for easy replacement of knives (Diamond 7 only).
- Manual & Auto Mode: Switch between automatic foot pedal or manual hand operation with the flip of a switch.
- Tool & Scrap Box: Separate built-in storage bins for tools and corner scraps.
- Large Work Table - available for additional pricing
- Heavy-Duty Foot Pedal
- 1 Year Warranty
Akiles Diamond-7 Specs | ||
|---|---|---|
Model: | Diamond 6 | Diamond 7 |
Maximum Rounding Capacity: |
2-3/8″ (60mm) | 2-3/4″ (70mm) |
| 600 Sheets (20 lb) | 700 Sheets (20 lb) | |
Maximum Slot Capacity: |
2mm | N/A |
Included Die: |
1/4″ | |
Available Dies |
1/8″, 1/4″, 3/8″, Straight, and Half-Moon (1/2″ and 5/8″ are Special Order) | |
Detachable Pressing Bar: |
No | Yes |
Protective Safety Cover: |
Included | |
Work Table: |
Included | |
Storage & Trash Bin: |
Included | |
Motor: |
100 W | 200 W |
Dimensions: |
24-5/8″ W x 12-5/8″ L x 17-1/2″ H | |
Weight: |
104 lbs | 110 lbs |
Warranty: |
1 Year | |
