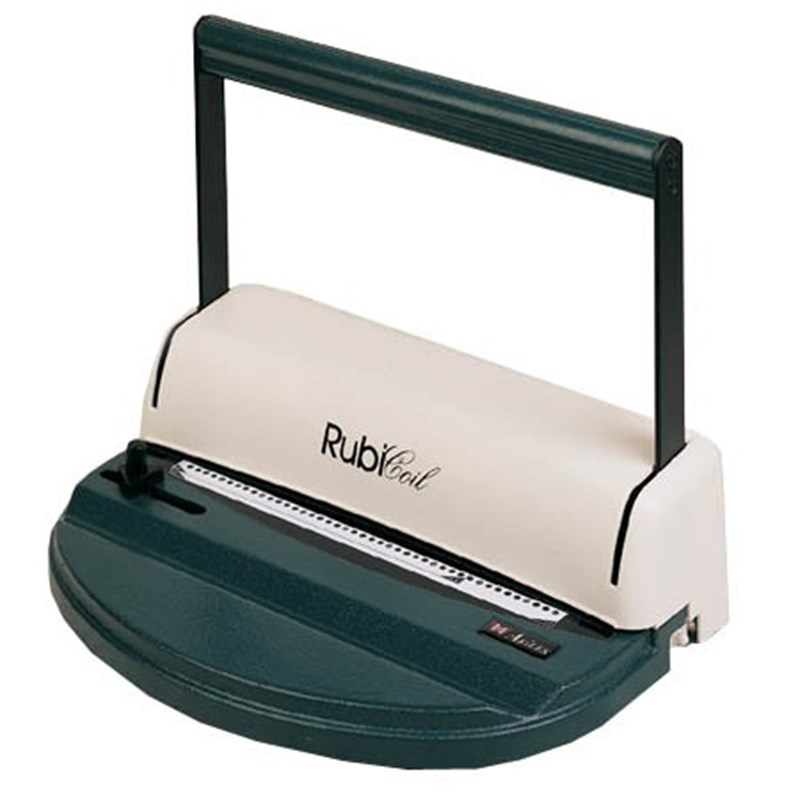

Akiles Rubicoil Coil Binding Machine Click on Image to Enlarge

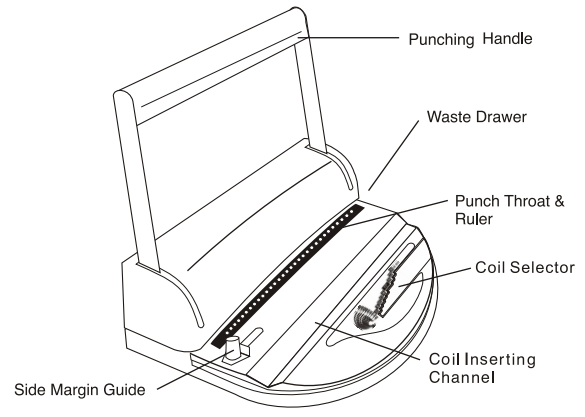

Akiles Rubicoil Coil Binding Machine RubiCoil Feature Diagram

Akiles RubiCoil.

SKU: ARCL41
$173.99
Adding this item to your cart will qualify your order for US domestic

AkilesLogo

In Stock
QTY:
In Stock
QTY:

Akiles

Akiles RubiCoil

Coil Punch and Inserting Equipment

Modern / Practical / Reliable / Efficient

Product Description

  • Effective: Punches up to 10 sheets of 20lbs bond paper.
  • Harden Steel dies: For a clean and precise punch every time, even when perforating delicate or hard to punch materials, such as PVC, PP, Polyester, etc.
  • U Shape Handle: Maximizes punching-strength, for an effortless perforation.
  • Strong: Metal chassis and high quality components guarantee durability and reliability.
  • Side Margin Guide: To evenly center the document.
  • Inserting Table Channel: Aids with the inserting of coil for a faster and more efficient bind.
  • ISO 9002 Quality

RubiCoil Punching Instructions

  1. Align Side Margin Guide to proper sheet & cover size.
  2. Insert sheets and pull handle forward to punch.
  3. Return Punch handle to its upright position.
  4. Repeat steps 2-3 as needed.

RubiCoil Punching Procedure

RubiCoil Inserting (Binding) Procedure

  1. Insert coil into first three of four holes.
  2. Place your punched document onto Coil Inserting Table and finish inserting coil by sliding hand.
  3. Use a set of pliers to cut-off any excess coil and bend. make sure you bend-in both coil ends. This procedure will avoid document from unbinding itself.

RubiCoil Binding Instructions

Contact Finitura for more information on RubiCoil Binding Machine Instructions and Pricing.





RubiCoil Specifications

Model:

  • RubiCoil

Pitch:

  • 6mm or 4:1

Hole Punch:

  • Round (4mm diameter)

Format:

  • Letter or A4 (46 or 49 dies)

Punching Capacity:

  • Up to 10 sheets of 20 lbs bond paper

Side Margin:

  • Included

Waste Drawer:

  • Included

Weight / Volume:

  • 16 lbs / 0.75 CbFt

Warranty:

  • 1 year
