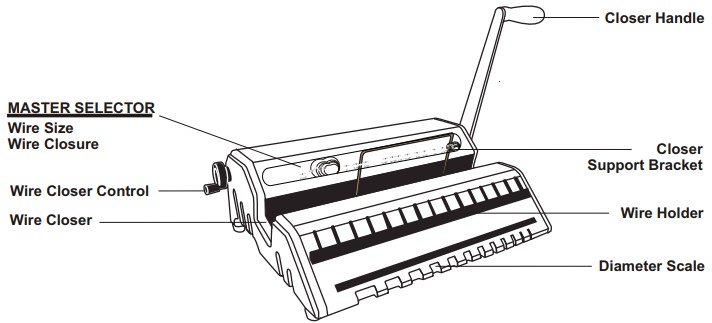

Akiles WBM-532 Wire Binding Machine Click on Image to Enlarge
Akiles WBM-532 Wire Binding Machine Akiles WMB-532 Wire Binding Machine

Akiles WBM-532 Wire Binding Machine

SKU: AWBM532
$279.00
Adding this item to your cart will qualify your order for US domestic

AkilesLogo

In Stock
QTY:
In Stock
QTY:

Akiles

Akiles WBM-532

Modular Wire CloserThe Akiles WBM-532 is a heavy-duty modular wire closer that allows you to easily close all standard binding wires (from 3/16" up to 1-1/4" in diameter, in either 3:1 & 2:1 pitch) and up to 14" in length and longer. Its simple-to-use & all-metal construction design guarantees high productivity and durability.

Product Description

Stand Alone Design: The WBM650 modular unit is designed to also work as a stand alone unit, thus no additional holding device is required.

Open-ended Closing Channel: allows closing of wires in any length, including those wires longer than 14".

Wire Closer Control: provides fast & accurate setup of the wire closer. Gradual adjustment guarantees a perfect wire closing result, regardless of the type of wire being used.

Closing Mechanism: Vertical

Built-in Wire Holder: holds the wire in position, so that punched sheets can be easily & quickly inserted into the duowire. Works with both 3:1 & 2:1 pitch wires.

Built-in Diameter Size Selector: measures documents thickness, in order to determine the best wire size option.

User-friendly Design and Heavy-duty All Metal Construction: guarantee maximum productivity and durability.

Akiles WBM-532 Specs

Model:

  • WBM-532 Modular Wire Closer

Max. Binding Thickness:

  • Up to 1-1/4" diameter

Max. Binding Length:

  • Any length(single binding length up to 14")

Closing Mechanism:

  • Vertical

Wire Closer Control:

  • Yes

Built-in Wire Holder:

  • Yes

Built-in Diameter Size Selector:

  • Yes

Heavy-duty:

  • All metal construction

Weight:

  • 27 lbs

Warranty:

  • 1 year

Akiles WBM-532 Set-Up

  1. Based on Diameter Scale reading, on the Master Selector you will determine: Wire Closure & Wire Size
  2. Set Wire Closer Control to the wire closure size determined from Step 1.
  3. (If needed) Use Master Selector to identify the size of your wire.

Akiles WMB-532 Set-Up Guide



Akiles WBM-532 Inserting

  1. Insert pre-selected wire into the Wire Holder.
  2. Insert document from last pages to first pages then insert front cover. The back cover should be inserted last with inside facing up.
  3. Take out inserted document from Wire Holder to close the wire.

Akiles WMB-532 Inserting Guide



Akiles WBM-532 Closing

  1. Put inserted document into Wire Closer. The wire element must stand horizontally at the bottom of Wire Closer.
  2. Pull Closer Handle forward to close.
  3. Take out document and turn back cover over. The binding is complete.

Akiles WMB-532 Closing Guide
