CoilMac ER Series Manual Coil Punch Click on Image to Enlarge

Akiles CoilMac ER Series

SKUs: Select product options
$436.50 - $467.00
Add $75.00 worth of items to your cart to qualify for

AkilesLogo

Ideal for mid-volume workloads, this Akiles wire binder features innovations and technology, such as a high volume punch capacity, to fulfill your coil binding needs efficiently and effectively. The CoilMac ER Series comes in 2 versions for round or oval holes to fit your wire binding requirements.

Read more >>

In Stock
QTY:
In Stock
QTY:

Akiles

Akiles CoilMac-ER Series

Manual Coil Punch with Electric Coil Inserter [AVAILABLE IN TWO VERSIONS!]

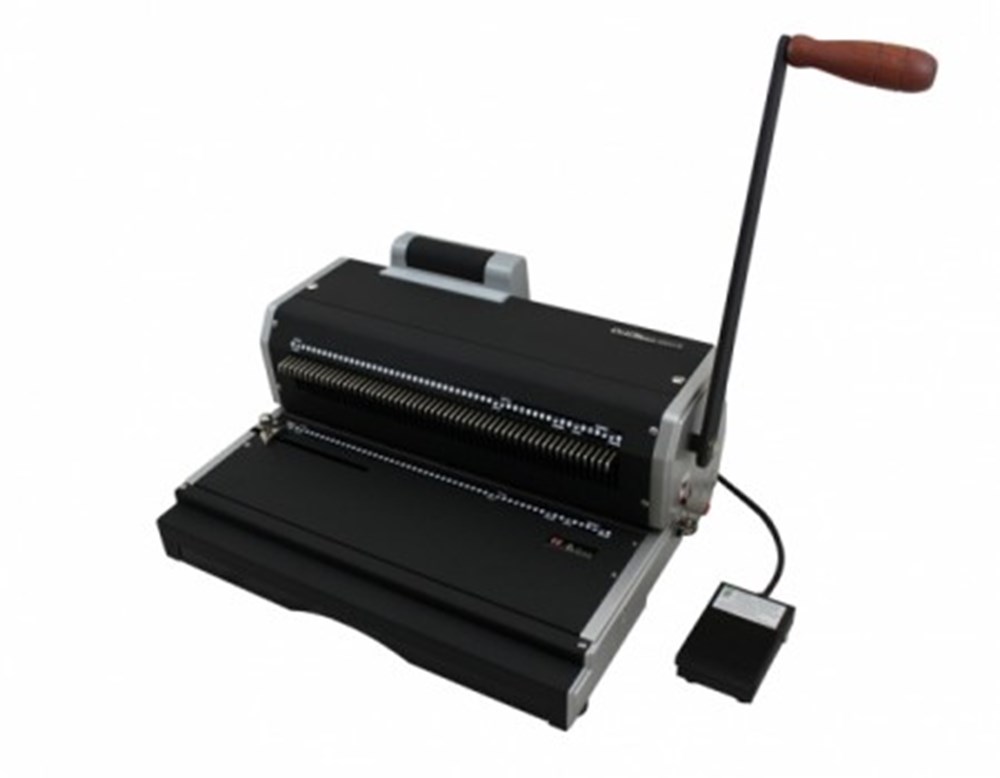

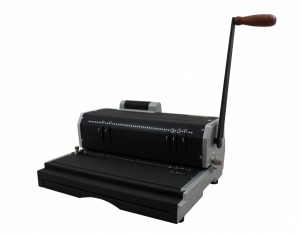

The Coilmac ER is a fully featured, heavy-duty manual coil punching machine, with a built-in Electric coil inserter. The re-designed & improved CoilMac-ER is the ideal partner for mid-volume workloads. The CoilMac ER Comes in two models: CoilMac-ER - Round Holes, 4:1 Pitch (.250"), and CoilMac-ER+ - Oval Holes, 4:1 Pitch (.248") punching machine, with a built-in Electric coil inserter.

Akiles Product Description

Standard version features:

PLUS version features:

Round Holes: Standard 4mm round holes. OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use. FULLY Disengageable Pins: For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.
STANDARD 4:1 Pitch (0.250): Standard pitch for coil binding. Punches 43 holes in an 11" sheet. LETTER 4:1 pitch (0.248): This revolutionary 0.248 coil pitch is specifically designed to give you 44 evenly-centered holes in an 11" sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

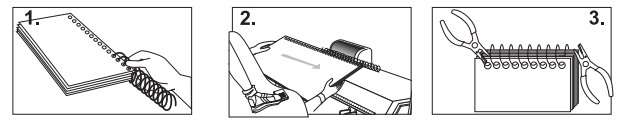

Coil Inserting Binding on Akiles CoilMac ER-Series

Akiles CoilMac - ER Series Set Up Guide

  1. Align punched document and place it on top of machine or table. Insert the coil into the first 4 to 5 holes. See picture 1
  2. Hold document evenly against roller (coil must slightly touch the roller). See picture 2
  3. Press foot pedal. The coil will automatically move forward inserting itself into the holes. See picture 2
  4. After the last hole insertion, IMMEDIATELY move document away from roller and/or stop pressing the foot pedal.
  5. Use crimpers to cut and crimp the excess coil. Make sure you crimp-in both ends. This procedure will prevent the document from unbinding itself. See picture 3

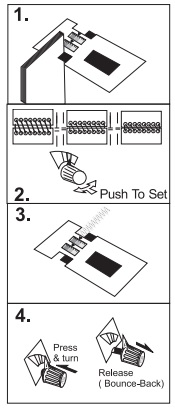

Akiles CoilMac ER-Series Set-Up Guide

  1. Use coil size guide to determine the correct depth margin and coil diameter. See picture 1
  2. To adjust to the correct punching margin, press and rotate the depth margin control. See picture 2
  3. (OPTIONAL) Use the coil diameter selector to determine or double check that you are using the correct coil diameter for your document. See picture 3
  4. The depth margin control button must bounce back upon release. If it does not, rotate it slightly back and forth until it does. See picture 4

Akiles CoilMac-ER Series Punching Guide

Coil Inserting Binding on Akiles CoilMac ER-Series

  1. Align punched document and place it on top of machine or table. Insert the coil into the first 4 to 5 holes. See picture 1
  2. Hold document evenly against roller (coil must slightly touch the roller). See picture 2
  3. Press foot pedal. The coil will automatically move forward inserting itself into the holes. See picture 2
  4. After the last hole insertion, IMMEDIATELY move document away from roller and/or stop pressing the foot pedal.
  5. Use crimpers to cut and crimp the excess coil. Make sure you crimp-in both ends. This procedure will prevent the document from unbinding itself. See picture 3

Akiles CoilMac-ER Series Binding Guide

Akiles CoilMac ER-Series Binding Machine Specifications



Model CoilMac-ER41 CoilMac-ER41+
Punching Operation Manual Manual
Inserting Operation Electric Electric
Punching Capacity 20 Sheets 20 Sheets
Pitch Standard 4:1 (0.25") Letter 4:1 (0.248")
Hole Size Round (4mm) Oval (4mm x 5mm)
Disengageable Dies 5 out of 53 All 54
Punching Length 13" (53 holes) 13" (54 holes)
Binding Capacity

Up to 7/8" (Electric)

Up to 2" (Manual)

Up to 1" (Electric)

Up to 2" (Manual)

Weight & Volume  34 Lbs & 2.37 CbFt 34 Lbs & 2.37 CbFt
Warranty 1 Year 1 Year
