HD7700 Punch Machine Click on Image to Enlarge

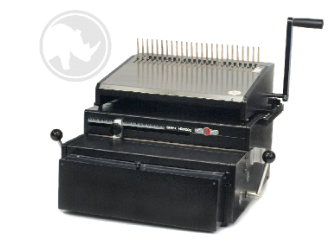

HD7700 Punch Machine HD7700 heavy duty comb binding machine

Rhin-O-Tuff HD7700 Price Match Guarantee - Call for Special Pricing

SKU: HD7700
This item is oversize or LTL – not qualified for free shipping.


In Stock
In Stock

3-Year Limited WarrantyImage result for rhin-o-tuff logo

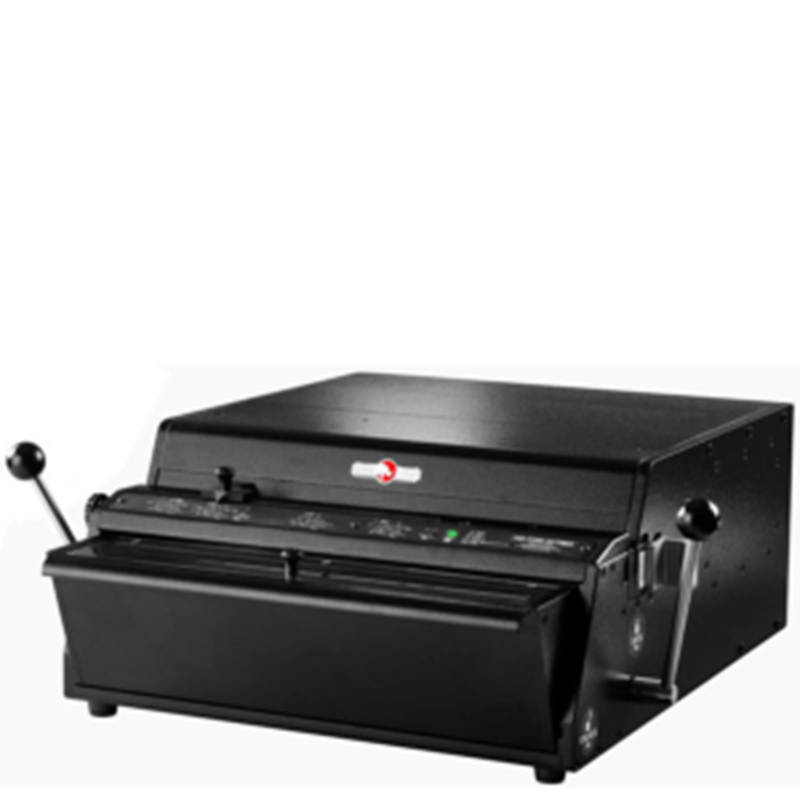

ONYX HD7700 Ultima Industrial Hole Punching Machine - ships via freight truck

The Rhin-O- Tuff HD7700 Ultima is the top of the line heavy duty durable Table Top Punch that has no equal. Combining the Rhin-O-Tuff patented Quick Change Die System with the following exciting new features:

  • 14 (356 mm) open ended extra capacity die: Punch up to 55 sheets or 110 pages of 11 inch, 20-pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used.
  • U-View waste tray: Holds up to 150% more waste than any other table top punch & eliminates troublesome overfills.
  • The Accu-Set Paper Stop: Set-up all hole placements easily & accurately to fit a comb, wire, coil or spiral book binding and paper binding, even with odd sized paper.
  • New Diagnostic Display Lights: Give indications of important machine conditions.
  • Automatic and Manual Reverse: Providing extra insurance to reduce costly down time & expensive service calls due to overload jams.

With these new features plus a 3 year warranty along with all of the standard features below, the HD7700 Ultima will handle any size project, large or small. Designed for high volume commercial and corporate use.

C.E. ApprovedRecycled

  • Patented Auto Reverse Feature.
  • Our new Overload Detection Feature triggers an auto reversing function to reduce jamming in the punch.
  • Rated up to 55 sheets or 110 pages of 20 pound (80 gsm) paper.
  • The number of sheets depends on the paper weight and punch pattern used. 25 cycles per minute.
  • Punch up to 5 plastic Mylar sheets regardless of hole pattern (depending on Mylar mil thickness).
  • Patented QCDS, Quick Change Die System.
  • All punch pins easily disengage.
  • Accu-Set paper adjustment knob for adjustments on odd paper sizes.
  • Smooth, Quiet, Power on Demand Operation.
  • Standard Foot Pedal & Palm Switch, optional Versa Switch.
  • The HD7700 has more than 20 interchangeable dies available with 12 standard hole patterns. (Each die is priced separately).
  • Combs Wire Loop Plastic Coils Velo Bind GBC 3 Hole Loose Leaf
  • Extremely durable all metal construction.
  • Extra high capacity
  • Waste Chip Tray with Clear View Access.
  • No sensors needed.

This item ships via Truck (Common Carrier). Dock to dock truck shipping is available for qualifying orders. It is the responsibility of the Consignee (receiver) to remove the product from the truck. If you do not have a loading dock or any other means to lift the freight off the truck and/or you need assistance bringing the product inside of your location please call 1-800-886-2463.
