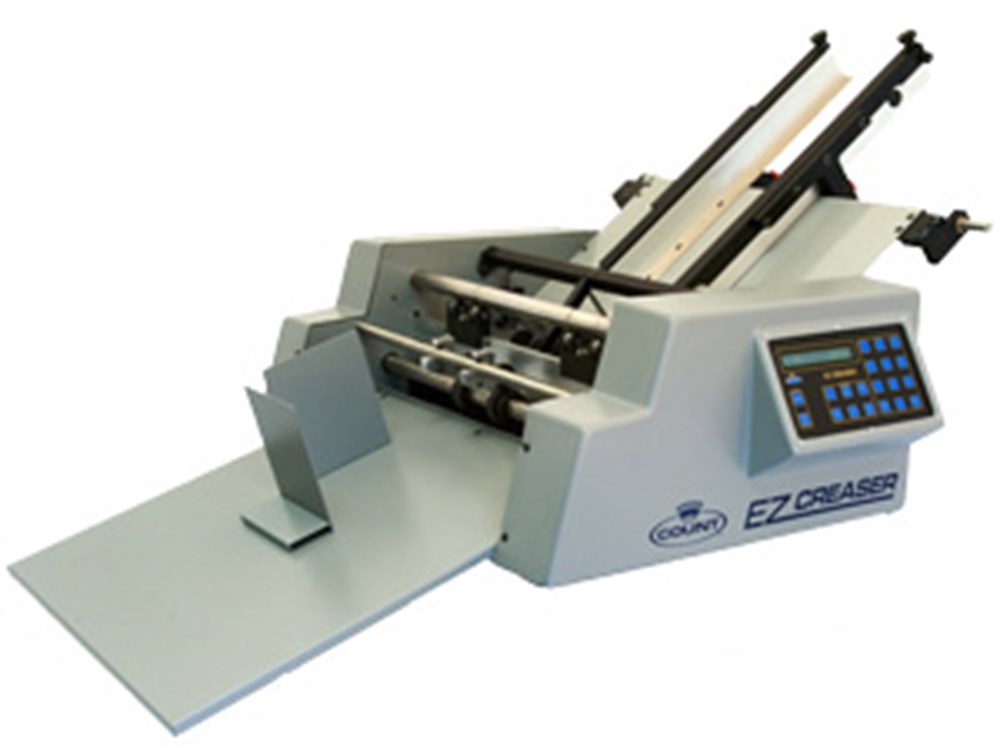

Count EZ Creaser Automatic Creasing, Perforating & Scoring Machine
Call 1-800-886-2463 for Leasing Options
Documents
VideosCount EZ Creaser
Count’s proven dependable microprocessor controls the stepper motor driven transport with total precision.
Crease positions are controlled to 1/100th. of an inch, and can be placed in up to eight locations per sheet.
Features:
• Accurate Rotary Actuated Impact Creasing
• Linear Perf/Score capabilities, including micro and laser perf.
• Micro-Lateral adjustable Feed Rails
• Batch and Total Counters
• Double Sheet Detection
• Ability to add Inline Folder
• Ability to add Inline transport to the Countcoat UV Coater
• Comes with both standard and wide crease dies.
Warranty:
Count warrants each new machine against defective parts and workmanship.
One year warranty on electrical and mechanical parts.
Five year warranty on microprocessor.
(BEST WARRANTY IN THE INDUSTRY: NON-PRORATED)
The COUNT™ EZCreaser gives you the robust features you need at an economical price, for lower to medium volume creasing, perforating and scoring. You get the speed and reliability of a top-feed automatic friction paper feeder, with smooth, consistent operation. You get a machine that’s simple to set up, and easy for anyone to use with the popular COUNT touch-screen operation, and one-touch automatic set-ups built in. And you get even higher speeds when operating in perf mode, with 5 interchangeable perf wheels (including micro-perf) and score assembly options available.
Count EZ Creaser Specifications
- Electrical: 115/60hz/10A or 230/50hz/10A (Specify on order)
- Max Sheet size: 18” x 20”
- Min Sheet size: 3” x 5”
- Stock Weights: 16lb. - 16 point
- Max Speed
- Compression Crease 4000 8.5 x 11 sph
- Rotary Perf/Score 12000 8.5 x 11 sph
