Akiles WireMac E Series Binding Machine Click on Image to Enlarge
Akiles WireMac E Series Binding Machine Akiles WireMacE Binding Machine

Akiles WireMac E Series

SKUs: Select product options
$1,659.00
This item is oversize or LTL – not qualified for free shipping.

In Stock
QTY:
In Stock
QTY:

Akiles WireMac-E Binding Machine

Heavy Duty Electric Punch & Manual Wire Closer

With its heavy duty punch motor and complete system of functions, the Akiles WireMac-E makes wire binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads.

  • 3:1 Wires are available from 3/16″ to 9/16″
  • 2:1 Wires are available from 1/4″ to 1-1/2″

Finitura offers a wide variety of medium volume wire binding machines and heavy duty wire binding machines ideal for mid to large sized binding applications. We offer free shipping and the best prices on the market.

Akiles WireMac-E31

Pitch
  • 3:1, 3 holes per inch
Wire Closing Capacity
  • 3/16" - 1 1/4"
Punch Length
  • 14" with open throat for longer documents
Hole Punch
  • Square 4mm x 4mm
Disengageable Dies
  • All 40 dies
Punching
  • Electric
Single Punching Capacity
  • Up to 20 Sheets (20 lbs paper)
Weight & Volume
  • 72 lbs & 2.92 CbFt
Warranty
  • 1 Year

Akiles WireMac-E21

Pitch
  • 2:1, 2 holes per inch
Wire Closing Capacity
  • 3/16" - 1 1/4"
Punch Length
  • 14" with open throat for longer documents
Hole Punch
  • Rectangular 4mm x 5.5mm
Disengageable Dies
  • All 27 dies
Punching
  • Electric
Single Punching Capacity
  • Up to 20 Sheets (20 lbs paper)
Weight & Volume
  • 72 lbs & 2.92 CbFt
Warranty
  • 1 Year

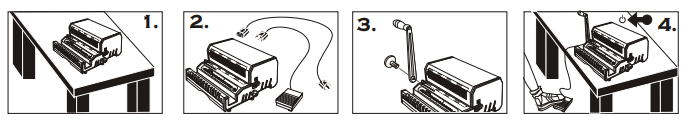

Akiles WireMac-E Assembly Guide

  1. Place your new WireMac-E on top of a sturdy working table (Picture 1).
  2. Plug the power cord and foot pedal cord to the back of machine (Picture 2).
  3. Remove the screw from Closing Axle clockwise as indicated, connect the Closing Handle in a vertical position onto the Closing Axle. Tighten-back the screws counter clockwise (Picture 3).
  4. Turn on Power switch and press foot pedal to test punching (Picture 4).
  5. Always turn switch-off and place Foot Pedal out of reach when machine is not in use.
  6. To reduce the risk of electric shock, never operate the WireMac-E near water.
  7. Do not use the WireMac-E if power cord is damaged.
  8. Do not allow the electric cord to be in contact with hot surfaces.
  9. In case of malfunction, return the unit to your distributor for service. This equipment does not contain any part that can be serviced by the consumer or operator.

WireMac-E Assembly Guide

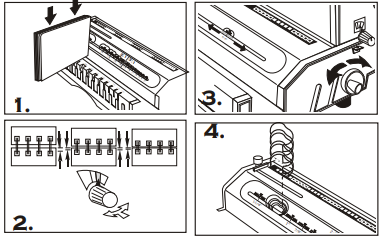

Akiles WireMac-E Setup GuideWireMac-E Setup Guide

  1. Based on the Diameter Scale reading on the Master Selector you will see: Depth Margin, Wire Closure, Wire Size
  2. Set the Depth Margin Control to the color determined from Step 1. Color indicated on Depth Margin Control should match color on Master Selector.
  3. Set Wire Closer Control to the wire closure size determined from Step 1.
  4. (If needed) Use Master Selector to identify the size of your wire.

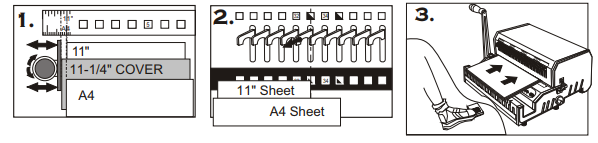

Akiles WireMac-E Punching Guide

  1. Align the Side Margin Control to proper sheet & cover size.
  2. Pull out Disengagement Pins to avoid partially punched holes.
  3. Insert sheets and press foot pedal to punch.

WireMac-E Punching Guide

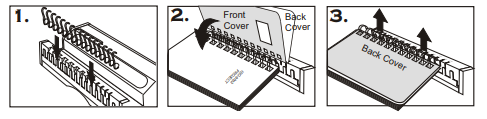

Akiles WireMac-E Inserting Guide

  1. Insert pre-selected wire into Wire Snatch.
  2. Insert document from last pages to first pages then insert the front cover. The back cover should be inserted last with inside facing up.
  3. Take out inserted document from Wire Snatch to close the wire.

WireMac-E Coil Insert Guide

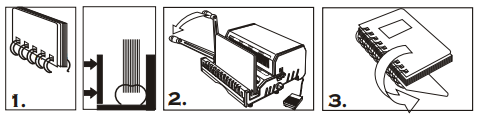

Akiles WireMac-E Closing Guide

  1. Put inserted document into Wire Closer. The wire element must stand horizontally at the bottom of the Wire Closer.
  2. Pull the Closer Handle forward to close.
  3. Take out the document and turn back cover over. The binding is complete.

Wiremac-E Wire Closing Guide

Contact Finitura for more information on Akiles binding machines, or shop all of our wire binding machines.

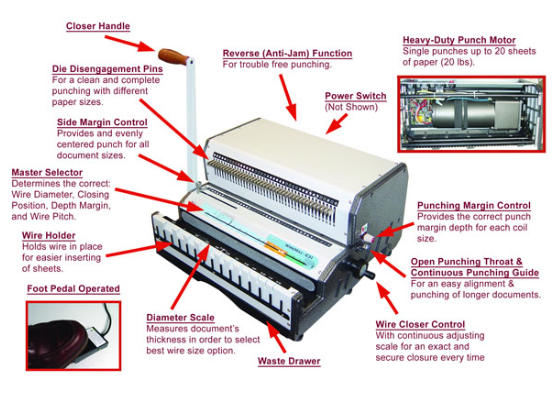

Akiles WireMac-E Binding Machine Specifications and Features

  • Die Disengagement Pins: For a clean and complete punching with different paper sizes.
  • Side Margin Control: Provides and evenly centered punch for all document sizes.
  • Wire Holder: Holds wire in place for easier inserting of sheets.
  • Foot Pedal Operated
  • Diameter Scale: Measures document’s thickness in order to select best wire size option.
  • Wire Closer Control: With continuous adjusting scale for an exact and secure closure every time.
  • Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.
  • Punching Margin Control: Provides the correct punch margin depth for each coil size.
  • Heavy-Duty Punch Motor: Single punches up to 20 sheets of paper (20 lbs).
  • Reverse (Anti-Jam) Function: For trouble free punching.
  • Waste Drawer
  • 1 Year Warranty



Akiles WireMac-E Manual
