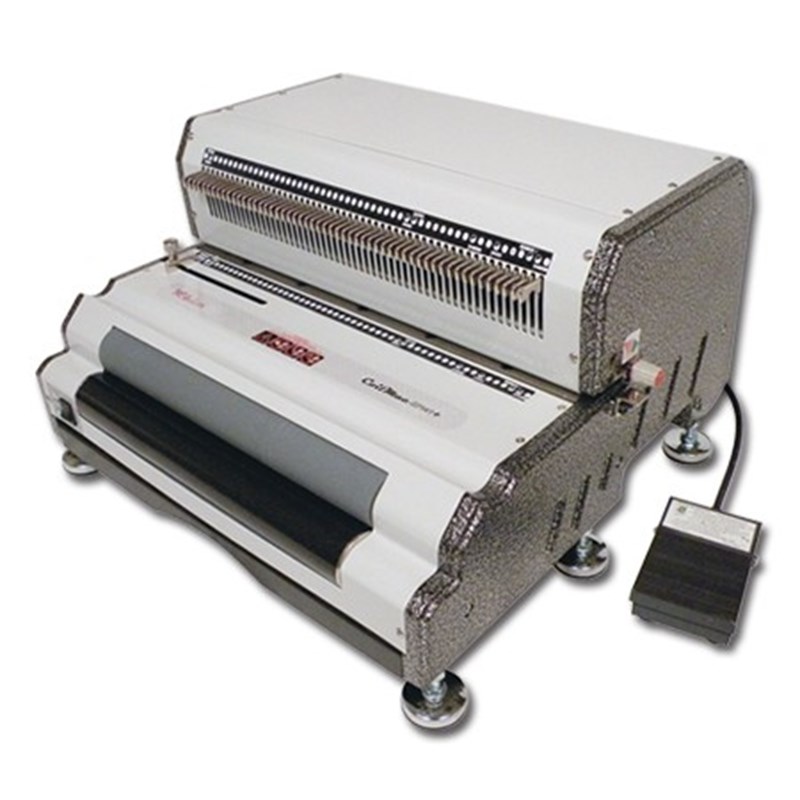

Akiles EPI Series Spiral Coil Binding Machine Click on Image to Enlarge
Akiles EPI Series Spiral Coil Binding Machine CoilMac EPI Binding Machine Akiles CoilMac EPI Coil Binding Machine Akiles CoilMac EPI Plus Binding Machine CoilMac EPI Binding Machine Punch Sample Akiles CoilMac EPI Features

Akiles CoilMac EPI Series

SKUs: Select product options
$1,999.00 - $2,049.00
DIMENSIONS Height: 25.00 Inches Width: 25.00 Inches Length: 42.00 Inches Weight: 75 Lb(s) 0 Oz
This item is oversize or LTL – not qualified for free shipping.

Akiles CoilMac

Reduce operation costs and improve efficiency with one of the best electric coil binding machines on the market. The CoilMac EPI series comes in 2 versions for oval and round holes, to fulfill all your coil binding needs.

Read more >>

Shop all Akiles binding machines available from Finitura



In Stock
QTY:
+ Add To Wish List
In Stock
QTY:
+ Add To Wish List
Features
Specifications
Documents
Videos

Akiles CoilMac-EPI41 & CoilMac-EPI41+Akiles CoilMac Binding Machines

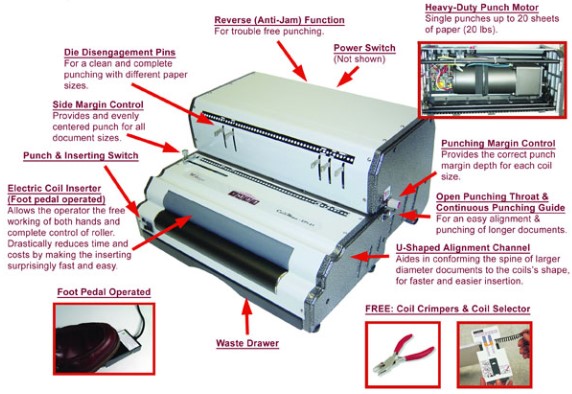

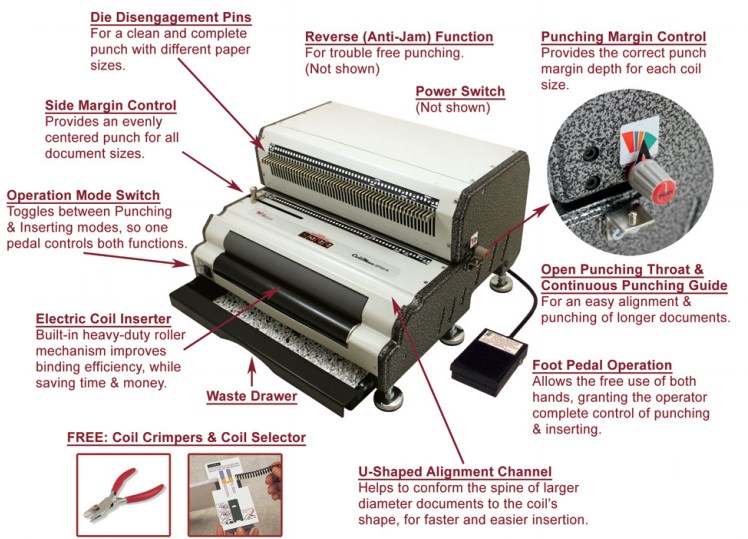

Akiles CoilMac-EPI Spiral Coil Binding Machine has a heavy duty punch motor and a built-in electric coil inserter. The CoilMac-EPI makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads. The CoilMac-EPI uses a single foot pedal to activate both the punch and the inserter. The CoilMac-EPI Comes in two different models: CoilMac-EPI - Round Holes, 4:1 Pitch (.250"), and CoilMac-EPI+ - Oval Holes, 4:1 Pitch (.248"). Contact Finitura for a quote 1-800-886-2463

Akiles CoilMac-EPI41Electric Coil Punch with HD Electric Coil Inserter[Available with Oval or Round Holes] With its heavy duty punch motor, built-in electric coil inserter, and complete system of functions, Akiles CoilMac-EPI makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads.

Akiles CoilMac-EPI41 Features:

  • Round Holes: Standard 4mm round holes

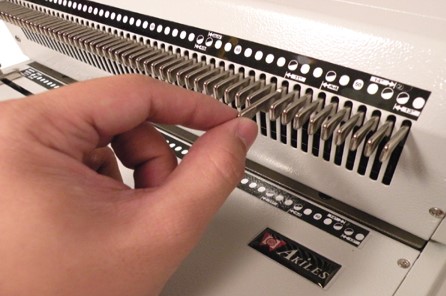

  • 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use
  • STANDARD 4:1 Pitch (0.250): Standard pitch for coil binding. Punches 43 holes in an 11" sheet

Akiles CoilMac-EPI41+ FeaturesAkiles CoilMac-EPI41+

  • OVAL Holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
  • FULLY Disengageable Pins: For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.
  • STANDARD 4:1 Pitch (0.250) Standard pitch for coil binding. Punches 43 holes in an 11" sheet. LETTER 4:1 pitch (0.248): This revolutionary 0.248 coil pitch is specifically designed to give you 44 evenly-centered holes in an 11" sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

Akiles CoilMac-EPI41 Binding Capacity & Diameter

No. SheetsInchMMCoil
  • 25
  • 1/8"
  • 3.2 mm
  • 5 mm
  • 35
  • 5/32"
  • 4.0 mm
  • 6 mm
  • 45
  • 3/16"
  • 4.8 mm
  • 7 mm
  • 60
  • 1/4"
  • 6.4 mm
  • 8 mm
  • 70
  • 9/32"
  • 7.2 mm
  • 9 mm
  • 80
  • 5/16"
  • 7.9 mm
  • 10 mm
  • 100
  • 13/32"
  • 10.3 mm
  • 12 mm
  • 120
  • 15/32"
  • 11.9 mm
  • 14 mm
  • 150
  • 19/32"
  • 15.0 mm
  • 17 mm
  • 180
  • 3/4"
  • 19.0 mm
  • 20 mm
  • 200
  • 25/32"
  • 19.8 mm
  • 22 mm
  • 230
  • 7/8"
  • 22.2 mm
  • 25 mm
  • 250
  • 1"
  • 25.4 mm
  • 28 mm
  • 280
  • 1 1/6"
  • 27.0 mm
  • 30 mm
  • 300
  • 1 1/8"
  • 28.5 mm
  • 32 mm
  • 350
  • 1 5/16"
  • 33.3 mm
  • 38 mm
  • 400
  • 1 9/16"
  • 39.7 mm
  • 45 mm
  • 450
  • 1 7/8"
  • 47.5 mm
  • 50 mm
Contact Finitura for more information on the Akiles CoilMac and other Akiles binding machines



Akiles CoilMac-EPI41 & CoilMac-EPI41+ Specifications

ModelCoilMac-EPI41CoilMac-EPI41+
Punching Operation
  • Electric
  • Electric
Inserting Operation
  • Electric
  • Electric
Pitch
  • Standard 4:1 (0.25")
  • Letter 4:1 (0.248")
Hole Size
  • Round (4mm)
  • Oval (4mm x 5mm)
Disengageable Dies
  • 5 out of 53
  • All 54
Punching Length
  • 13.5" (53 holes)
  • 13.5" (54 holes)
Punching Capacity
  • Up to 25 sheets (20 lbs paper)
  • Up to 25 sheets (20 lbs paper)
Binding Capacity
  • Electric: Up to 7/8"
  • Manual: Up to 2"
  • Electric: Up to 1"
  • Manual: Up to 2"
Weight & Volume
  • 70 lbs & 4.33 CbFt
  • 70 lbs & 4.33 CbFt
Warranty
  • 1 Year
  • 1 Year



Akiles CoilMac-EPI Manuals
