Akiles CoilMac-M Series Standard Click on Image to Enlarge
Akiles CoilMac-M Series Standard CoilMac-M coil binding machine Akiles CoilMac-M Plus

CoilMac M Series

SKUs: Select product options
$769.00 - $869.00
DIMENSIONS Height: 25.00 Inches Width: 25.00 Inches Length: 45.00 Inches Weight: 40 Lb(s) 0 Oz
Add $200.00 worth of items to your cart to qualify for

AkilesLogo

Streamline efficient productivty in your facility with the Akiles CoilMac-M Series binding machine. When it comes to spiral coil binding, few manual coil binding machines are as user-friendly as those in the Akiles CoilMac-M Series family. These reliable spiral machines enable users to quickly and efficiently accomplish their task. The EZ Inserting Table makes inserting coils a breeze.

Learn more>>

In Stock
QTY:
+ Add To Wish List
In Stock
QTY:
+ Add To Wish List
Features
Specifications
Documents

Akiles

Akiles CoilMac-M Series

Manual Coil Punch with EZ Inserting TableTM [NOW AVAILABLE IN TWO VERSIONS!]

Akiles CoilMac-M renders efficiency and productivity. Its high quality components and full range of functions make it the most complete and durable equipment in its class, and one of the easiest to operate. Akiles CoilMac-M is undoubtedly the ideal partner for your important coil binding jobs.

Available In Two Versions

Akiles CoilMac-M Series Standard
CoilMac-M(STANDARD version)

Akiles CoilMac-M Series Plus
CoilMac-M Plus(PLUS version)

Product Description

STANDARD version features:

PLUS version features:

Round Holes: Standard 4mm round holes. OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use. FULLY Disengageable Pins: For a completely clean & professional punching ofany paper size, all 54 pins can be independently pulled & disengaged.
STANDARD 4:1 Pitch (0.250): Standard pitch for coil binding. Punches 43 holes in an 11" sheet. LETTER 4:1 pitch (0.248): This revolutionary 0.248 coil pitch is specifically designed to give you 44 evenly-centered holes in an 11" sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

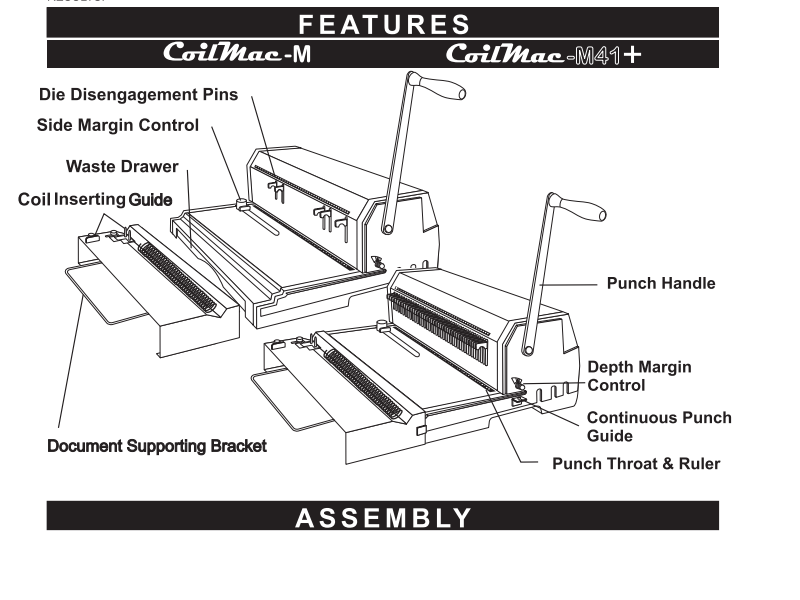

Features Guide for Both Models

The features included in the CoilMac-M series allow convenient use and efficient punching capabilities perfect for any streamlining office.

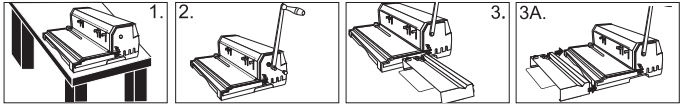

CoilMac and CoilMac Plus Assembly Guide

1. Place your new CoilMac on top of a sturdy worktable

2. Remove the screw from the punching axle. Insert the punch handle, in a vertical position, onto the punching axle and tighten back the screw into the punching axle (make sure screw is well fastened counter clockwise).

3. Attach the Coil inserting Table to the front of your CoilMac or place it next to your machine, whichever is more convenient for you.

CoilMac series product assembly instructions

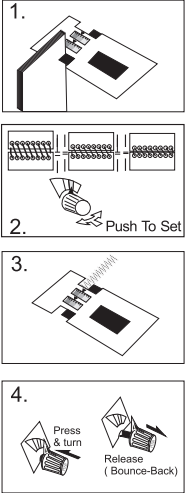

CoilMac and CoilMac+ Setup Guide



  1. Use Coil Size to determine the correct:
    • Depth margin
    • Coil diameter
  2. Push and rotate the Depth Margin Control to set your preferred Punching Margin
  3. (OPTIONAL) You may use the Coil Diameter Selector to determine the correct coil diameter for your document.
  4. Punch a few waste sheets to clean off any excess oil on the punching dies.



Binding Machines

Coil Binding Machines

Manual Coil Binding Machines

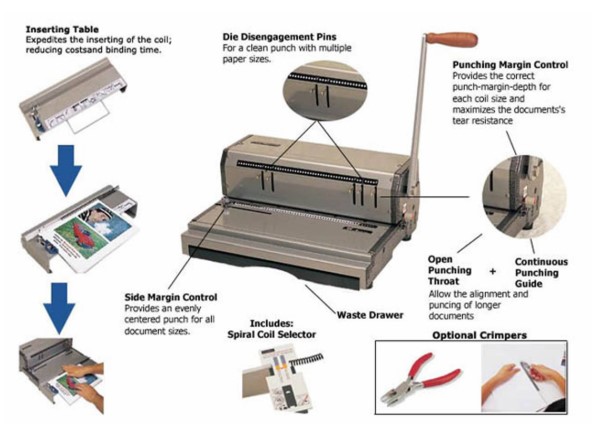

Akiles CoilMac Series Machine Specifications

  • One Year Warranty: Warranty will not cover damages due to improper use or miss treatment of the unit. All other damages will be repaired or replaced by your manufacturer
  • Punches up to 20 sheets
  • Plus Version Available with Oval Holes: special oval-shaped holes will improve your binding speed by as much as 50%
  • Extended Punch Length: easily punch any sheet size up to 26”
  • Detachable table: the coil inserting table is detachable for convenient binding jobs
  • Fully Disengageable Pins in Plus Version: All pins can be independently removed for custom punching jobs
  • Side Margin Control: Provides an evenly centered punch for all document sizes
  • Continuous Punching Guide: Easily align documents for precision punching
  • All Metal Construction: One of the most reliable and durable coil binding systems

Akiles CoilMac-M Brochure

Akiles CoilMac-M Operator Manual
